用途及特征：防尘圈HF01-05的作用是防止粉尘、污物、沙粒或细屑
进入缸体，以保护密封件和活塞杆等部件的损伤。
标准材料：聚氨脂PU（代号04）；
工作条件：耐压≤21MPa ；
工作温度：-30℃～+100℃；
工作介质：液压油、皂化液；
速度：2 m/s

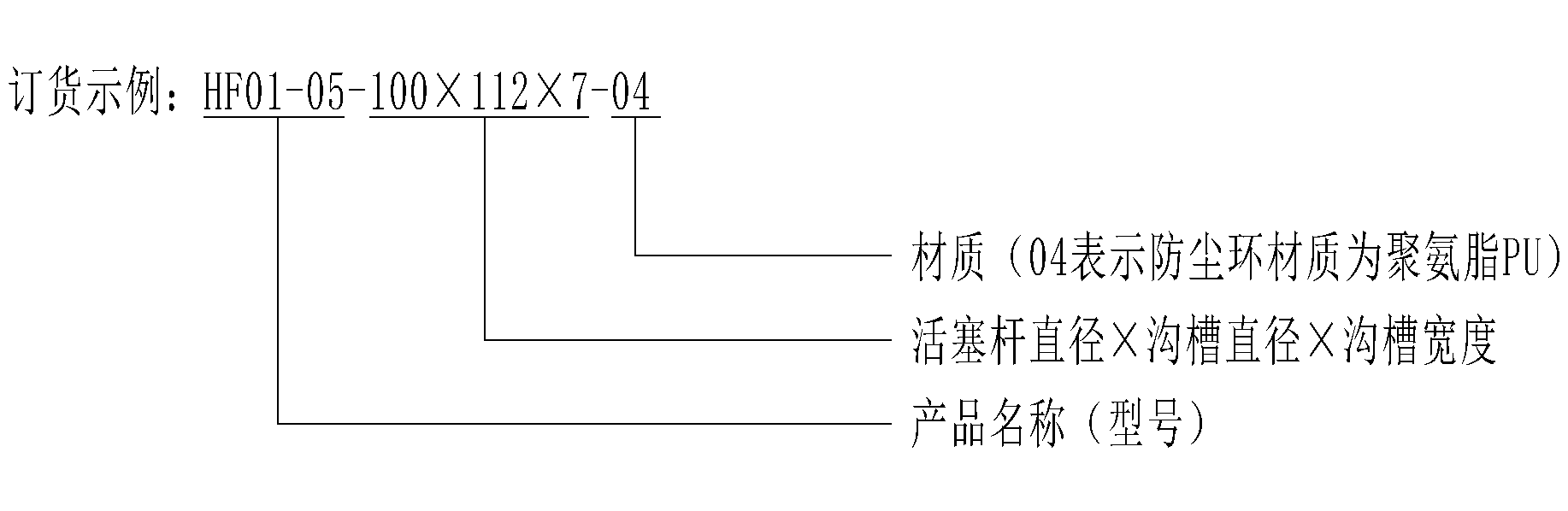

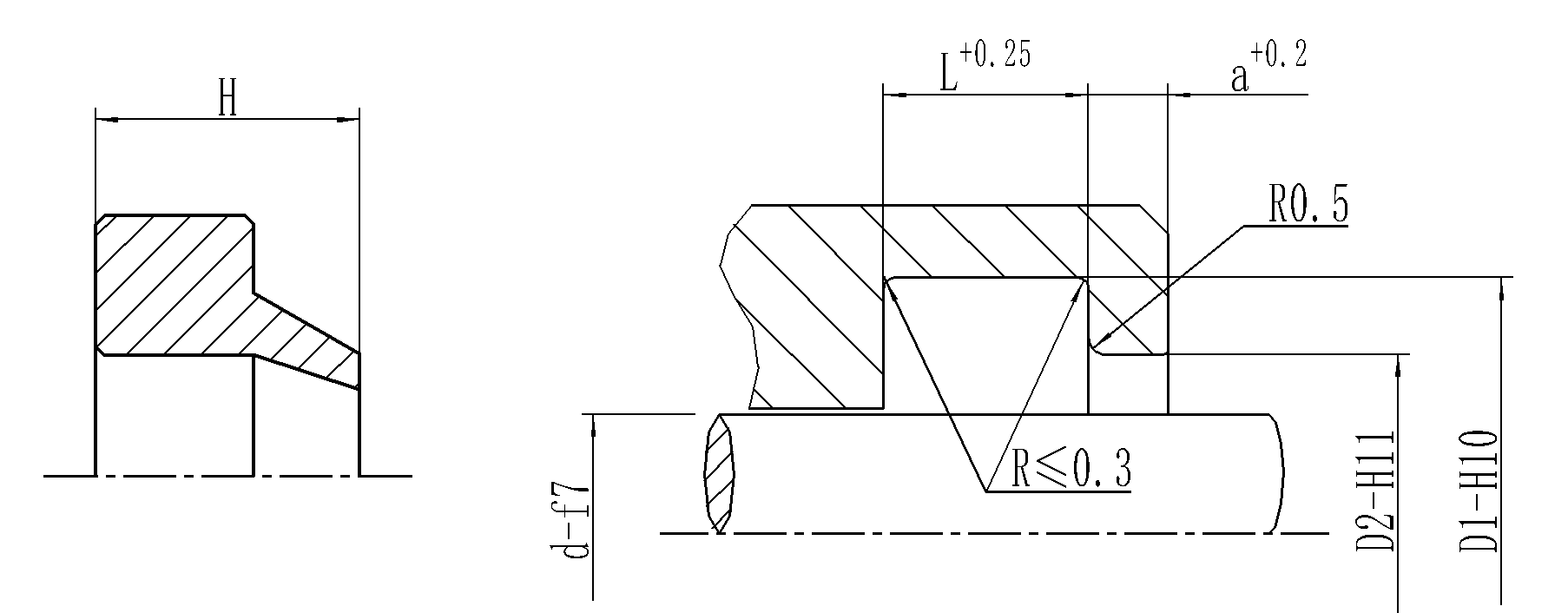

防尘圈HF01-05基本尺寸表
d | D1-H10 | D2-H11 | L+0.2 | H | a |
16 | 24 | 21 | 5 | 9 | 3 |
18 | 28 | 23 | 5 | 9 | 3 |
20 | 30 | 25 | 5 | 9 | 3 |
22 | 32 | 27 | 5 | 9 | 3 |
25 | 35 | 30 | 5 | 9 | 3 |
28 | 38 | 33 | 5 | 9 | 3 |
30 | 40 | 36 | 6 | 10 | 3 |
30 | 40.5 | 36 | 6 | 10 | 3 |
32 | 42 | 38 | 6 | 10 | 3 |
35 | 45 | 41 | 6 | 10 | 3 |
40 | 50 | 46 | 6 | 10 | 3 |
45 | 55 | 51 | 6 | 10 | 3 |
50 | 60 | 56 | 6 | 10 | 3 |
55 | 65 | 61 | 6 | 10 | 3 |
55 | 67 | 61 | 7 | 11 | 3.5 |
60 | 72 | 66 | 7 | 11 | 3.5 |
63 | 75 | 69 | 7 | 11 | 3.5 |
65 | 77 | 71 | 7 | 11 | 3.5 |
70 | 82 | 76 | 7 | 11 | 3.5 |
75 | 87 | 81 | 7 | 11 | 3.5 |
80 | 92 | 86 | 7 | 11 | 3.5 |
85 | 97 | 91 | 7 | 11 | 3.5 |
90 | 102 | 96 | 7 | 11 | 3.5 |
95 | 107 | 101 | 7 | 11 | 3.5 |
100 | 112 | 106 | 7 | 11 | 3.5 |
105 | 117/119.5 | 112 | 8 | 12 | 4 |
110 | 124 | 117 | 8 | 12 | 4 |
115 | 129.5 | 122 | 8 | 12 | 4 |
120 | 134 | 127 | 8 | 12 | 4 |
125 | 139 | 132 | 8 | 12 | 4 |
130 | 144 | 137 | 9 | 14 | 4 |
135 | 149 | 142 | 9 | 14 | 4 |
137 | 151 | 144 | 9 | 14 | 4 |
140 | 154 | 147 | 9 | 14 | 4 |
140 | 158 | 147 | 9 | 14 | 4 |
142 | 160 | 149 | 9 | 14 | 4 |
150 | 164 | 157 | 9 | 14 | 4 |
150 | 168 | 157 | 9 | 14 | 4 |
155 | 173 | 162 | 8 | 12 | 4 |
160 | 174 | 167 | 9 | 14 | 4 |
160 | 178 | 167 | 9 | 14 | 4 |
180 | 194 | 187 | 9 | 14 | 4 |
190 | 208 | 197 | 9 | 14 | 4 |
200 | 214.5 | 207 | 9 | 14 | 4 |
200 | 218 | 207 | 10 | 16 | 5 |
220 | 238 | 227 | 9 | 14 | 4 |
230 | 248 | 237 | 9 | 14 | 4 |
240 | 256 | 247 | 9 | 14 | 4 |
250 | 266 | 257 | 10 | 16 | 5 |
250 | 266 | 257 | 10 | 16 | 5 |
260 | 276 | 267 | 9 | 14 | 4 |
260 | 276 | 267 | 10 | 16 | 4 |
265 | 281 | 272 | 9 | 14 | 4 |
280 | 296 | 287 | 10 | 16 | 5 |
300 | 316 | 307 | 10 | 16 | 4 |
305 | 323 | 312 | 9 | 14 | 5 |
320 | 336 | 327 | 9 | 14 | 5 |
320 | 336 | 327 | 10 | 16 | 5 |
330 | 348 | 337 | 9 | 14 | 4 |
340 | 356 | 347 | 10 | 16 | 5 |
360 | 376 | 367 | 10 | 16 | 5 |
380 | 396 | 387 | 10 | 16 | 4 |
400 | 418 | 407 | 10.5 | 18 | 5 |
420 | 438 | 427 | 10.5 | 18 | 5 |
450 | 468 | 457 | 10.5 | 18 | 5 |
